RE Series ARGB Fan
RE120
RE120F BK ARGB
A 120 mm ARGB case fan platform with center-lit blades, frame light guides, PWM control, hydraulic bearing support, and front or reverse airflow options for cleaner case builds.
One ARGB lighting platform, four build-facing choices. Black or white. Front or reverse airflow.
RE120 Design
Built for everyday ARGB builds without losing Ryvntec detail.
RE120 focuses on visual consistency, clean cable routing, stable PWM control, and practical cooling performance for standard 120 mm case positions.

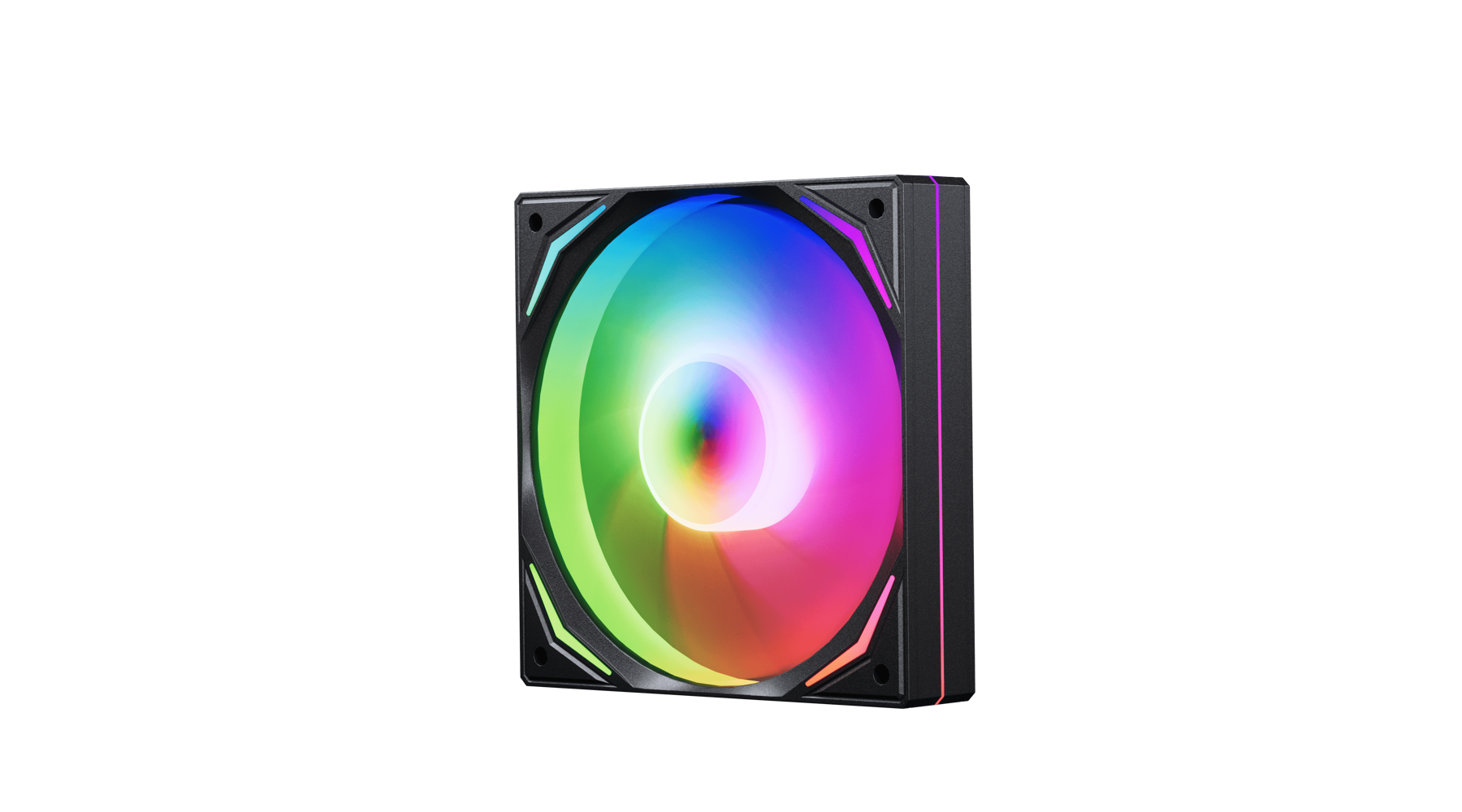

ARGB Light System
Center blade glow with frame light guides.

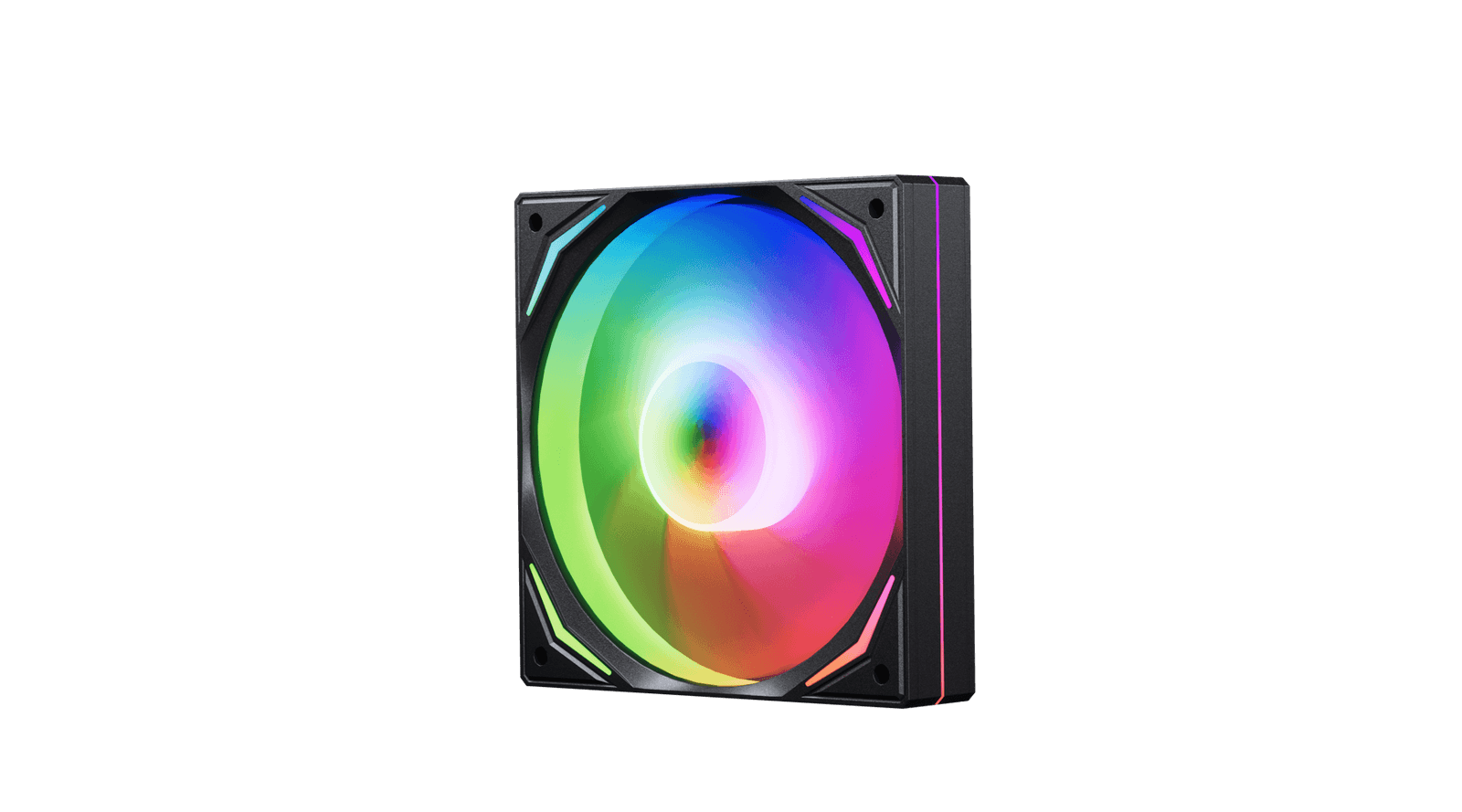

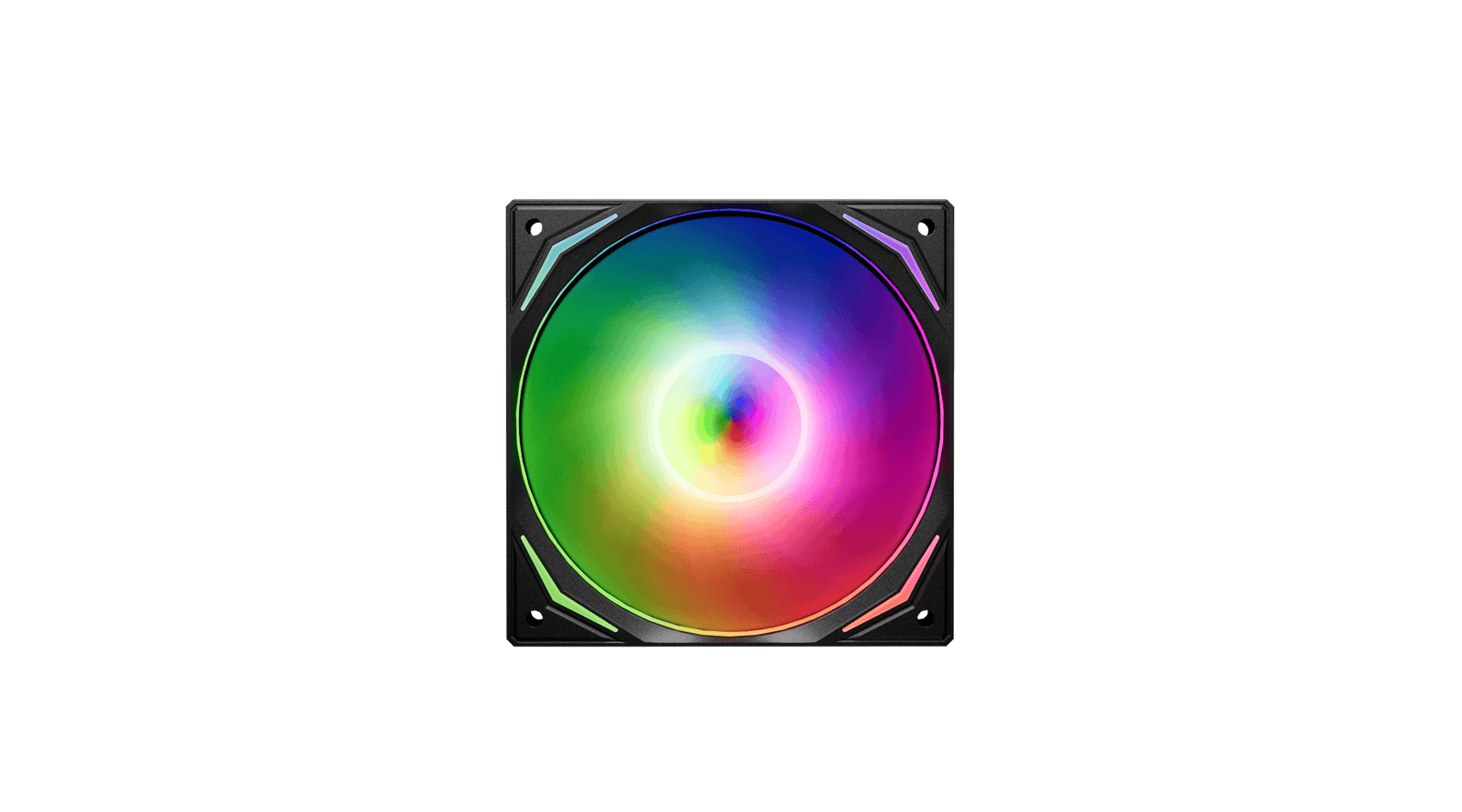

Center LEDs illuminate the translucent blade and carry light into the frame guide structure, including corner light accents for a fuller case view.

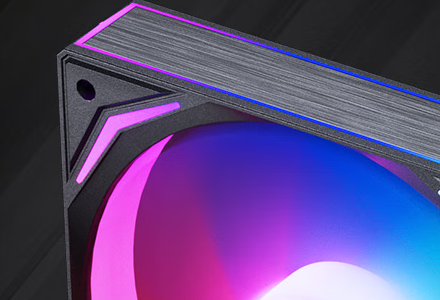

Exterior Finish
Clean frame detail in black or white.

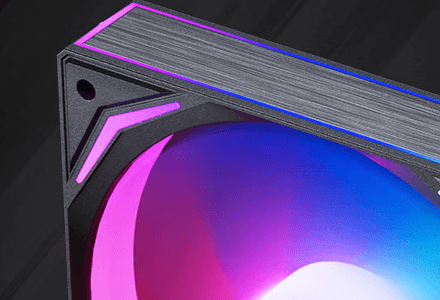

The frame uses a restrained geometric face, corner light-guide styling, and a side rail detail that keeps the fan tidy in visible case positions.
Front / Reverse Options
Keep the lighting side visible in different airflow layouts.
Front-airflow and reverse-airflow models let builders place intake and exhaust fans while keeping the visible face consistent across the case.Clean Case Airflow

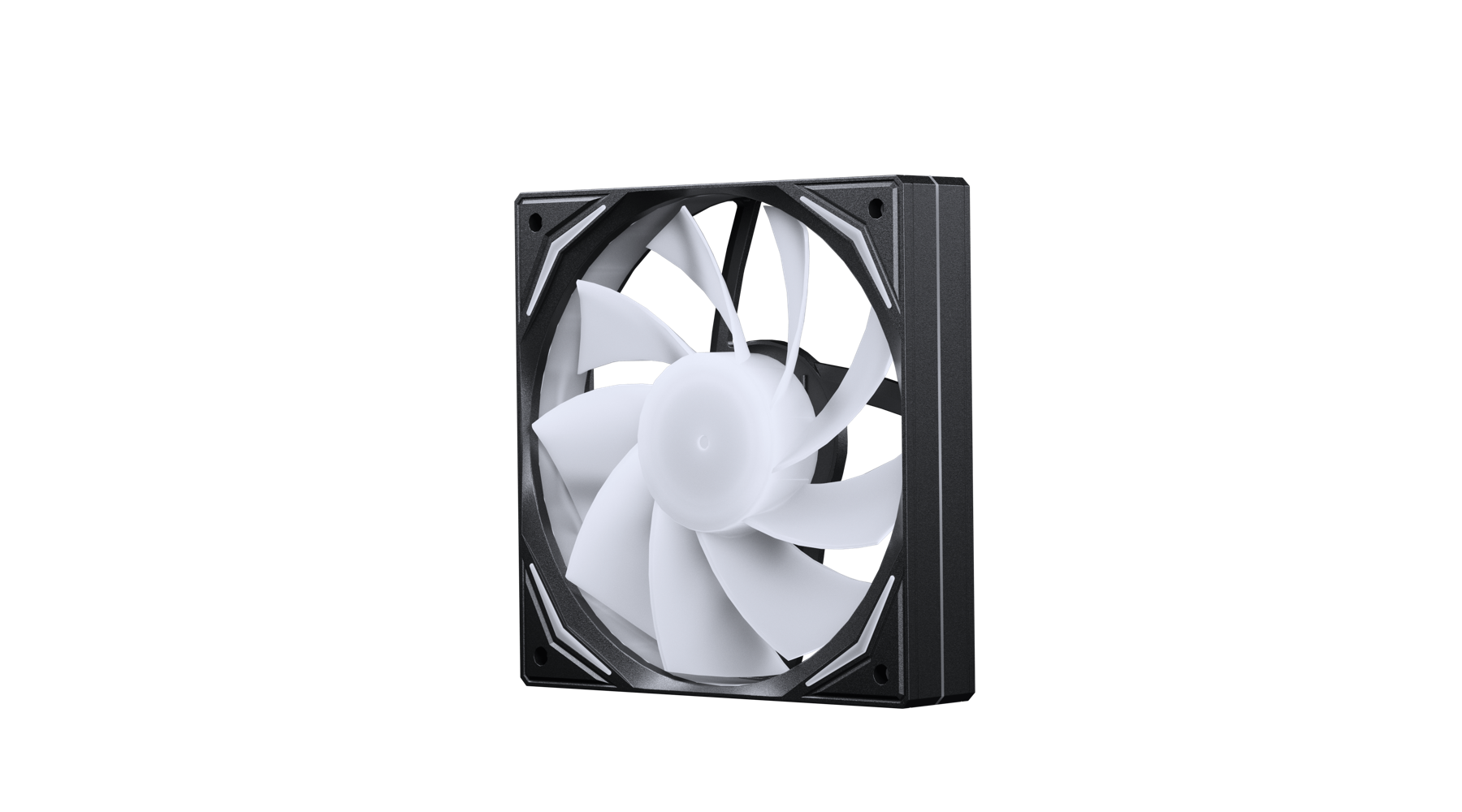

Reverse blades keep the clean face visible.

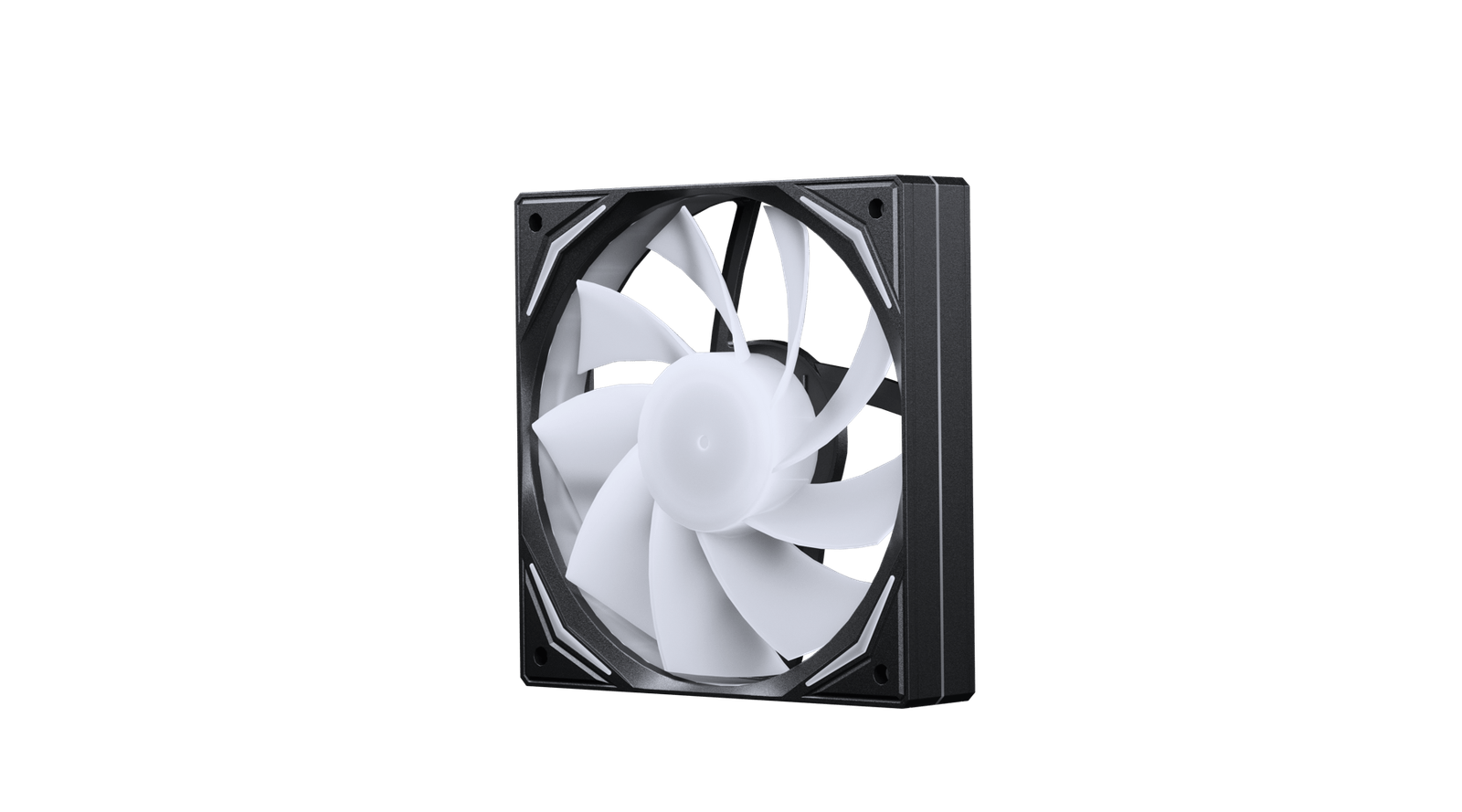

In side intake, bottom intake, and multi-fan airflow layouts, reverse models let the visible side stay clean instead of exposing rear support struts.

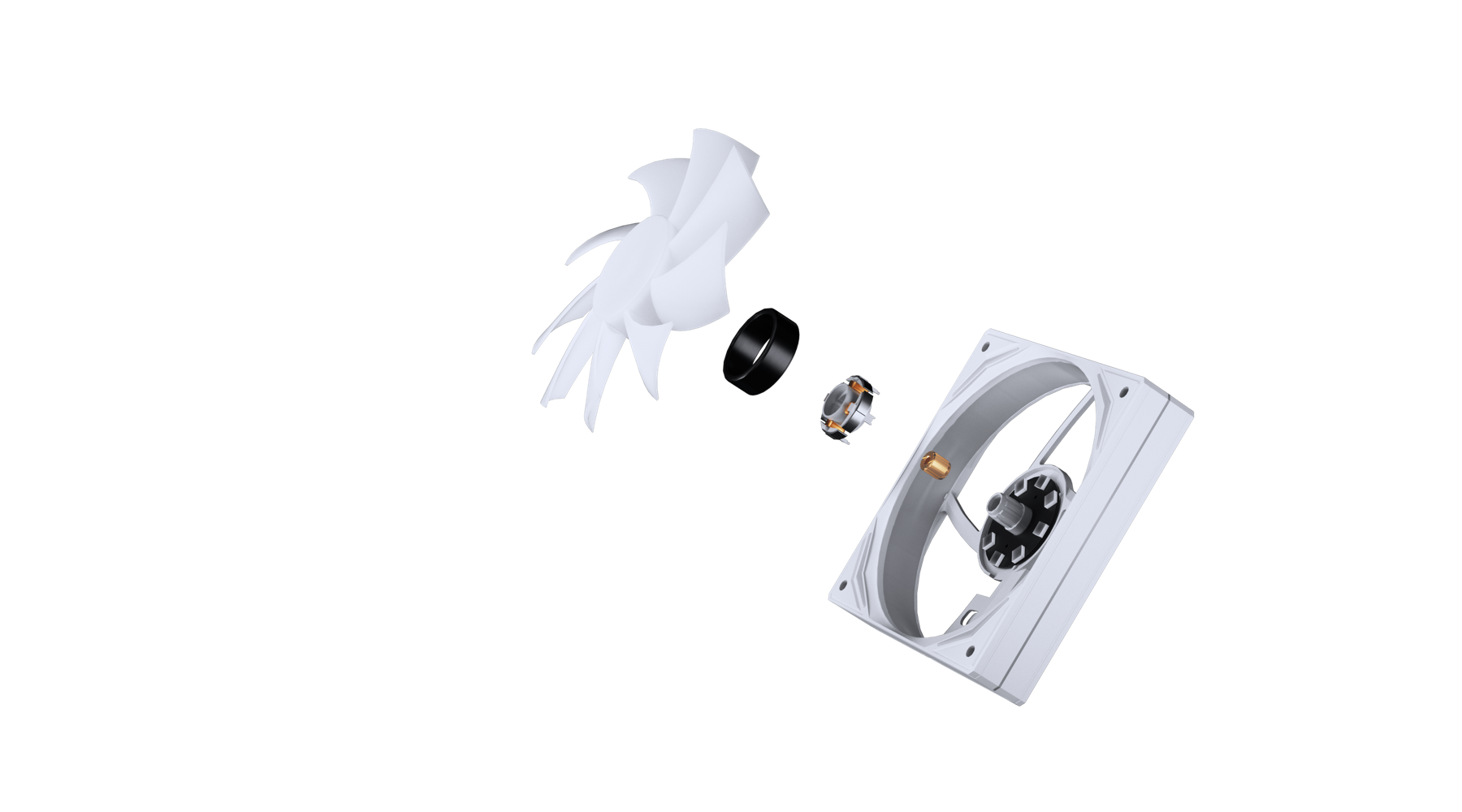

PWM + Bearing
Controlled speed with hydraulic bearing support.

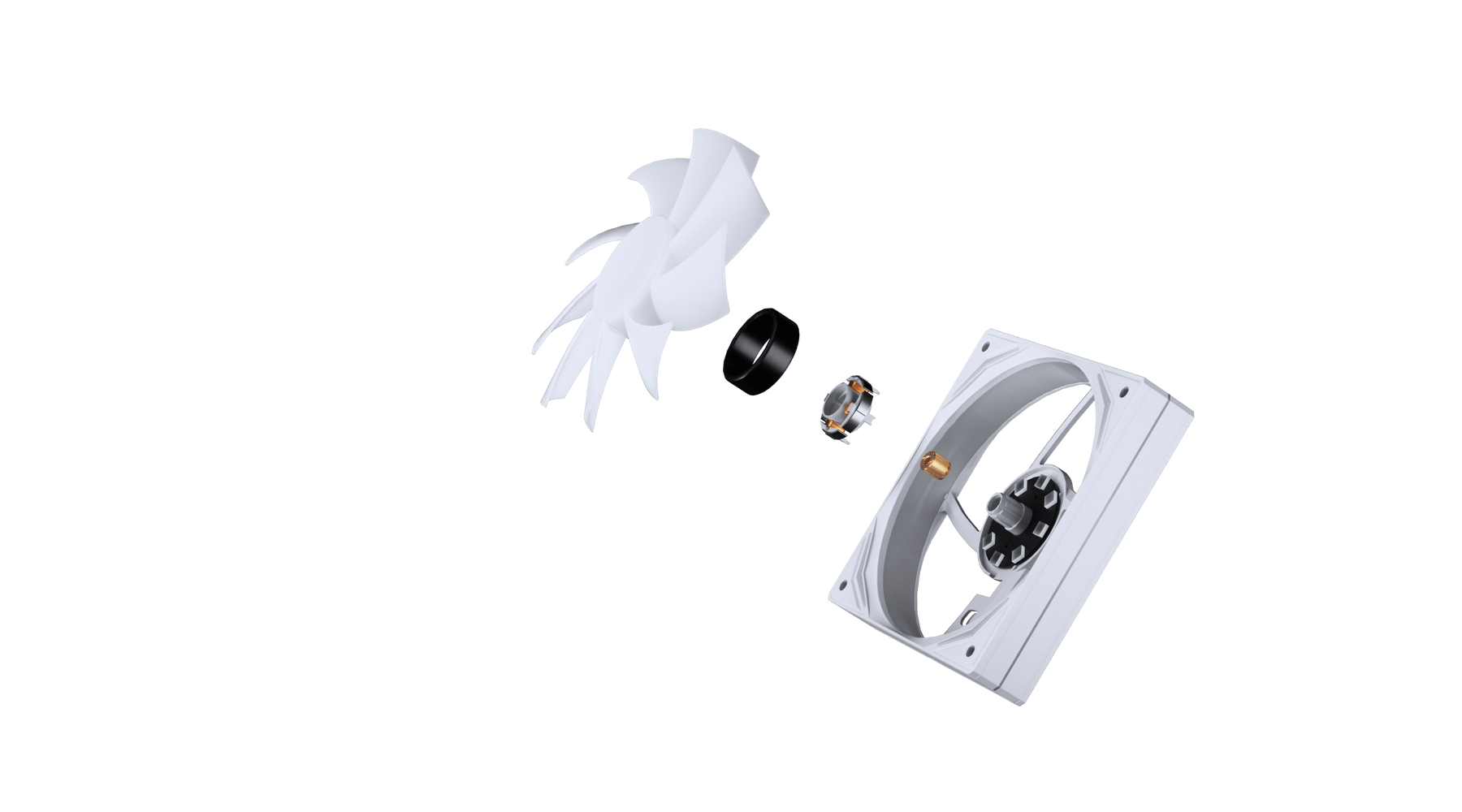

600-1600 RPM PWM control balances daily airflow and acoustic comfort, while hydraulic bearing support gives the fan a 40,000-hour rated service life.

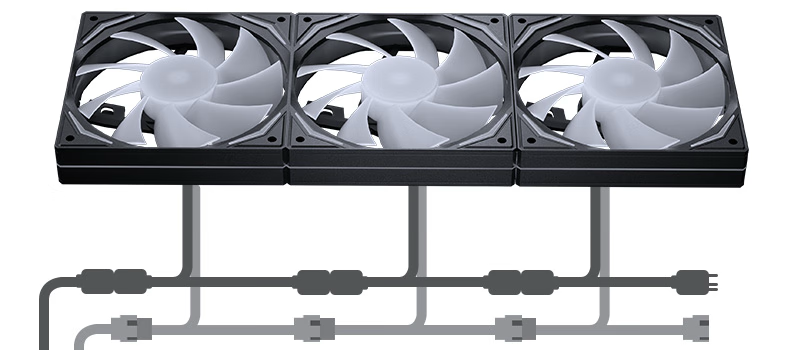

Installation
Daisy-chain wiring for cleaner multi-fan layouts.
4-pin PWM and 5V 3-pin ARGB male/female connectors support serial connection between multiple fans, reducing cable clutter inside the case.Technical Data

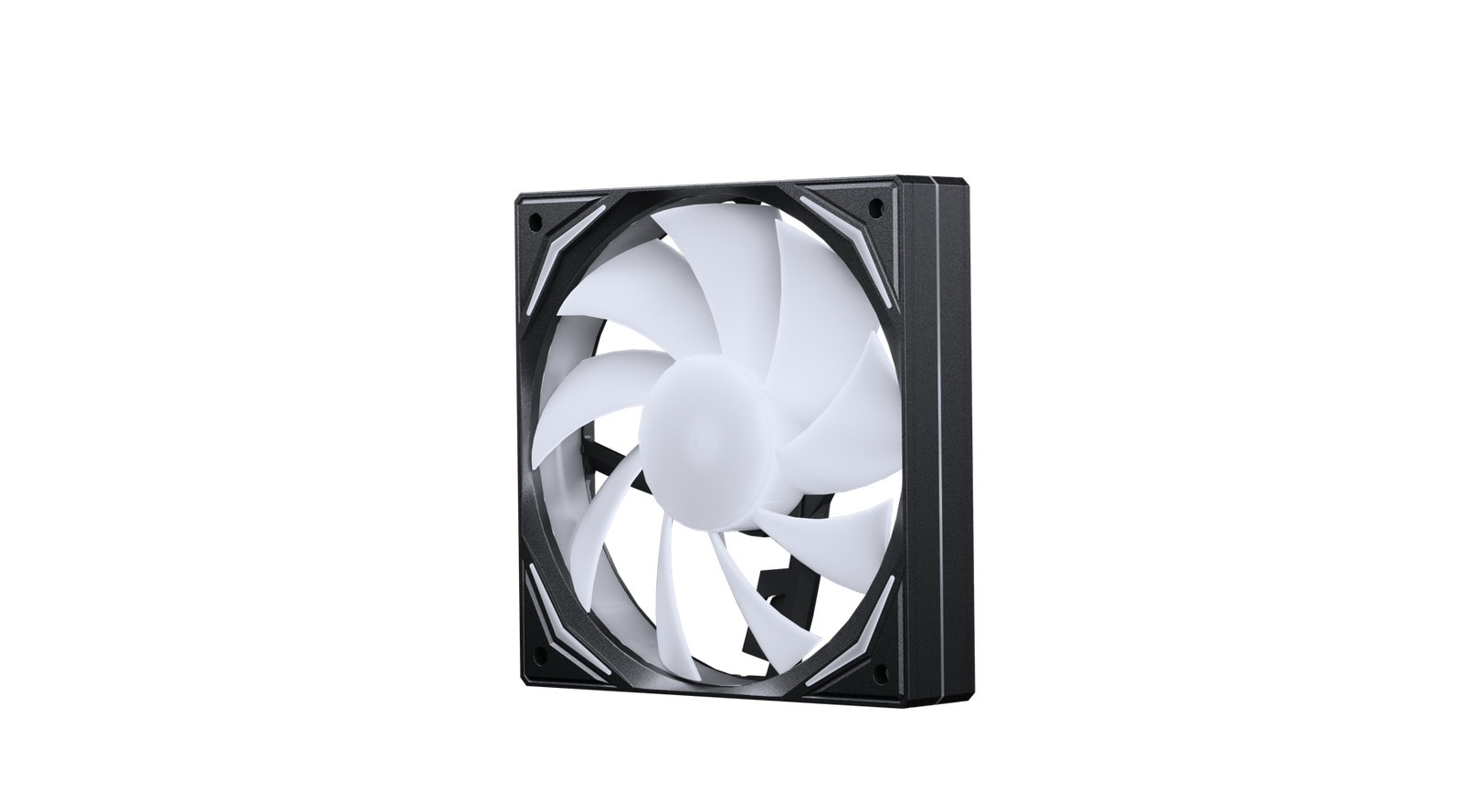

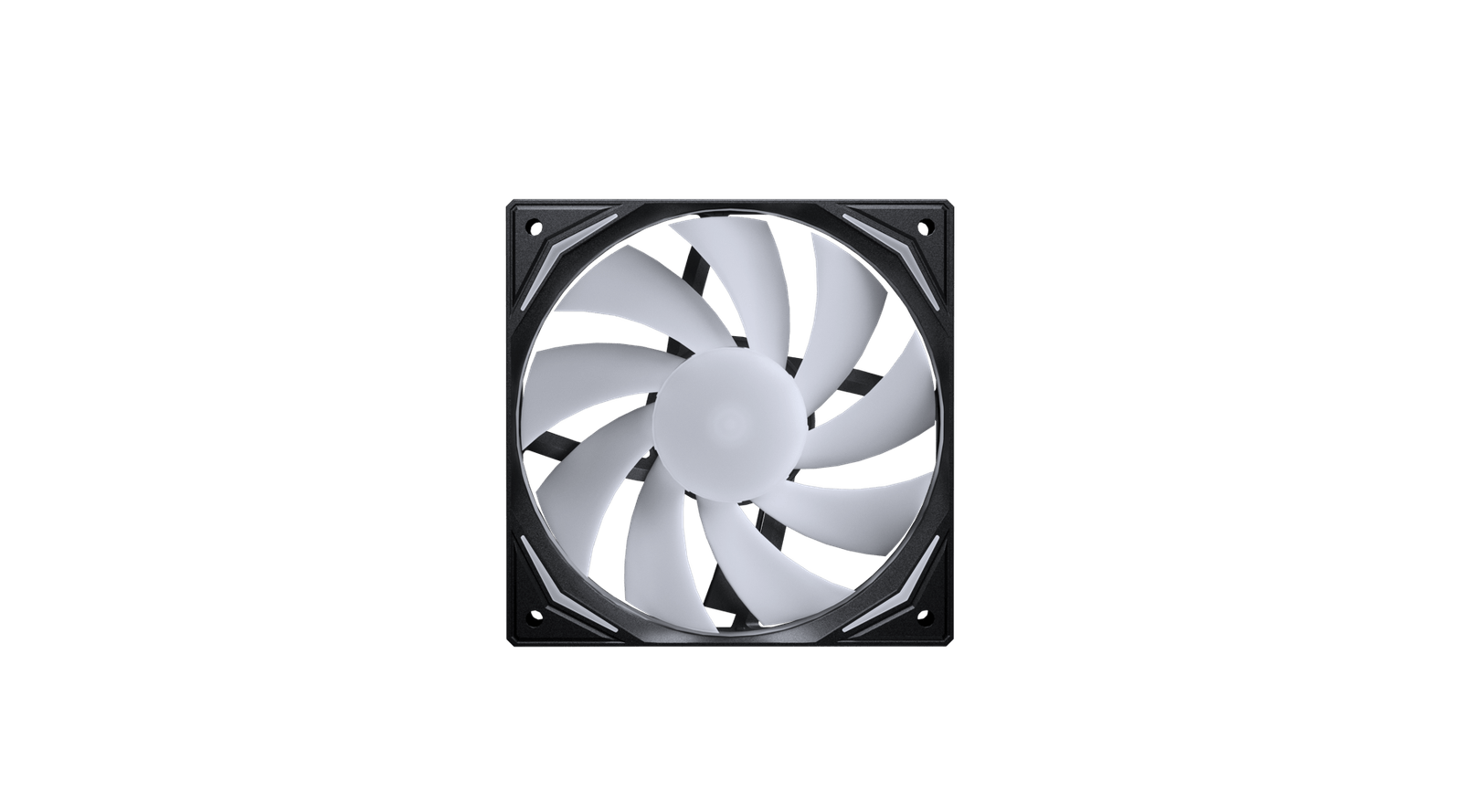

RE120F BK ARGB specification overview.
- Model
- RE120F BK ARGB
- P/N
- R3-E12FBKAT1
- EAN
- 6978898030215
- Factory Model
- TXJ-122512LHHA-JG001
- Color
- Black
- Airflow Layout
- Front airflow / Front Blade
- Dimensions
- 120 x 120 x 25 mm
- Weight
- 140 g
- Speed
- 600-1600 RPM
- Airflow
- 62.2 CFM max
- Static Pressure
- 1.68 mm-H2O
- Noise
- 25.6 dB(A) max
- Bearing
- Hydraulic bearing, 40,000-hour rating
- Fan Power
- 12V DC, 0.25A, 3W
- Lighting
- 5V ARGB, 0.18A, 0.9W
- Fan Connector
- 2510 4-pin PWM male-to-female, 500 mm
- LED Connector
- 5V 3-pin ARGB female-to-male, 500 mm
- Warranty
- 5 years

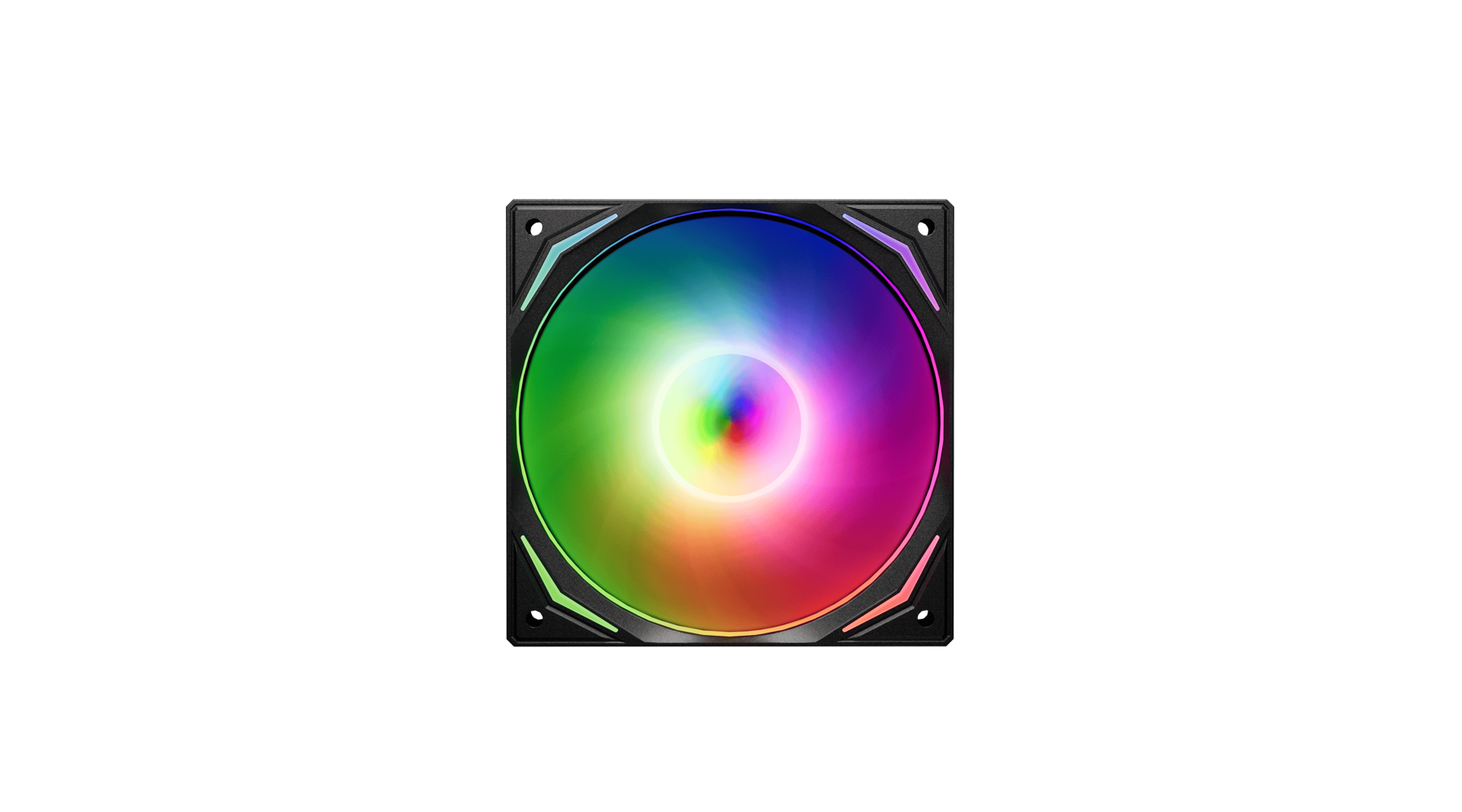

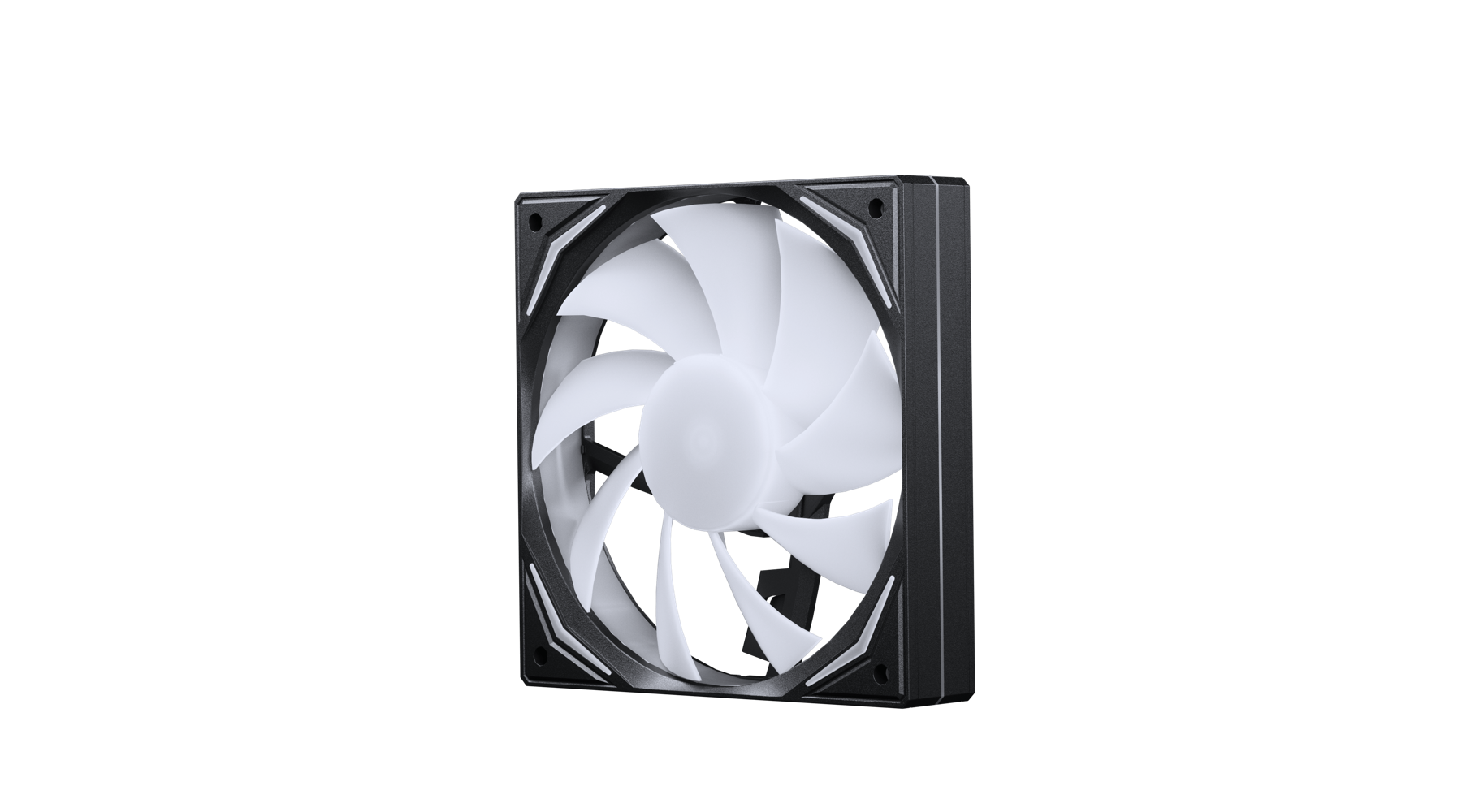

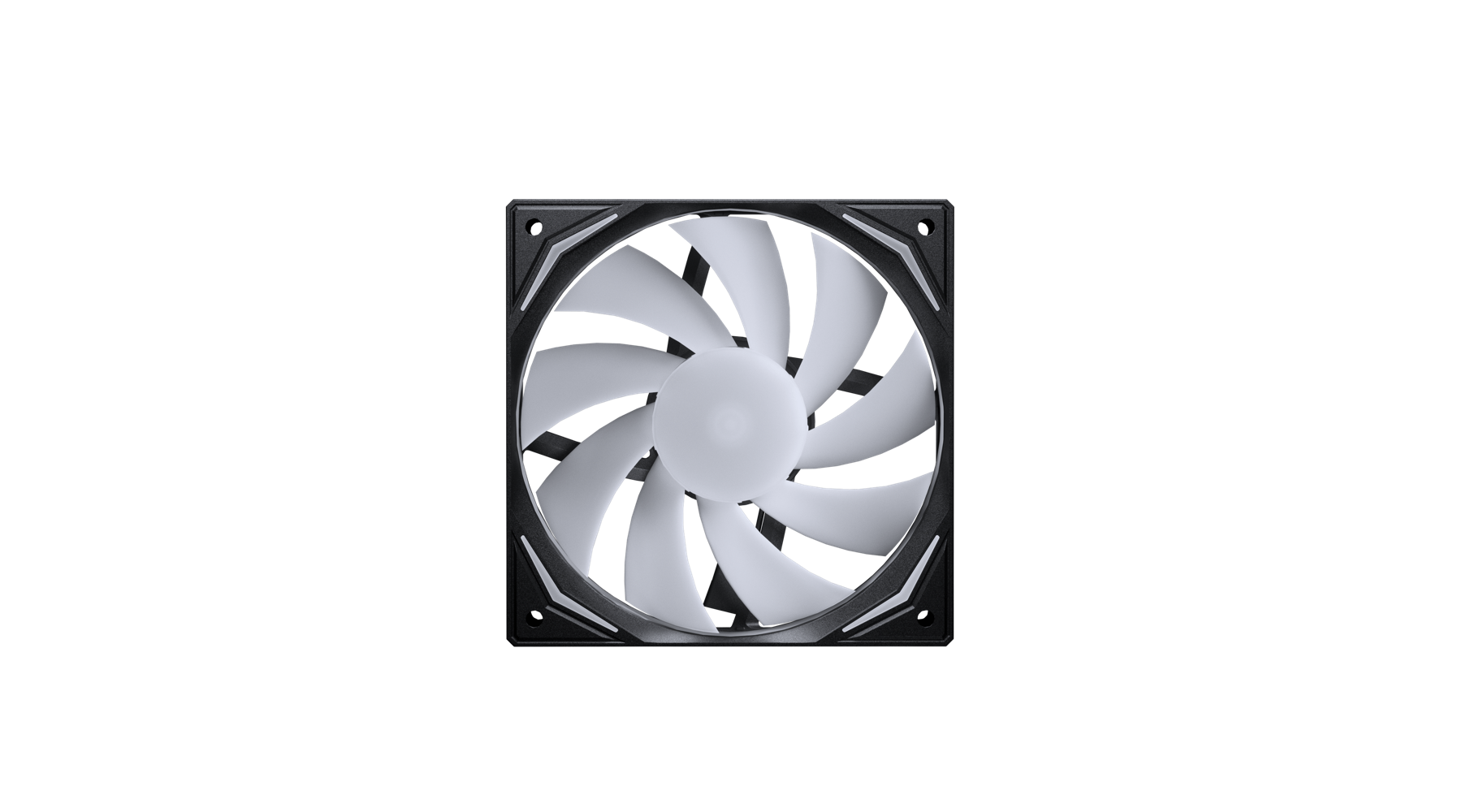

Product Views
